Product Descripe:
Battery Disconnect Kill Selector Switch
Wide applications:
This float switch is designed for bilge pump applied in Car, RV, Boat, Yacht, ATV, Winches, etc.
Specifications:
Material Plastic

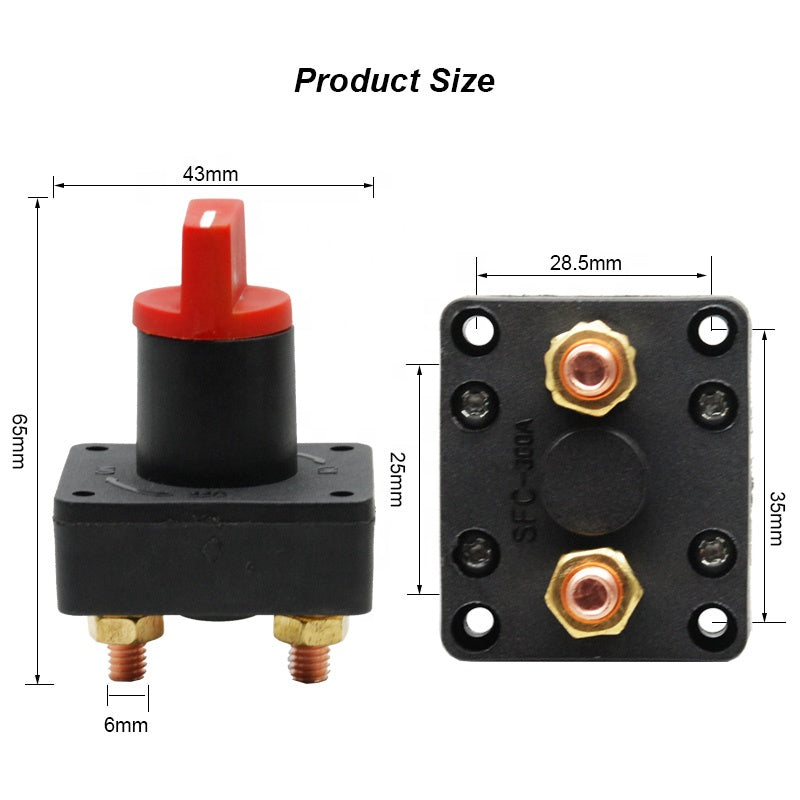

Size 43 x 36 x 64mm/ 1.69 x 1.42 x 2.52"(L x W x H)
Screw diameter 6mm

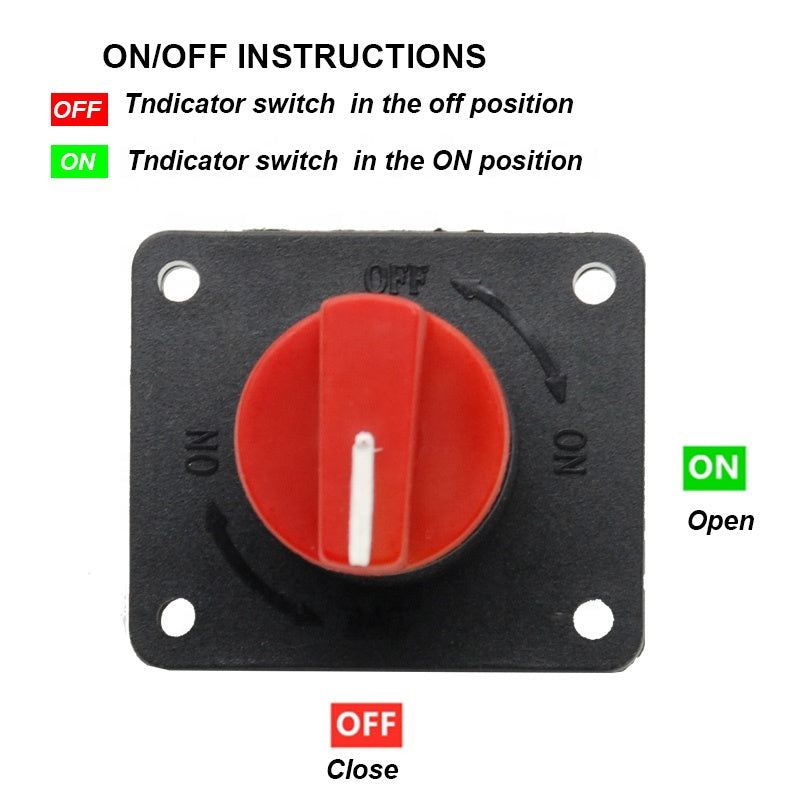

Diatance between two switch positions 25mm
Color Red abd Black
Electrical life 10000 hours

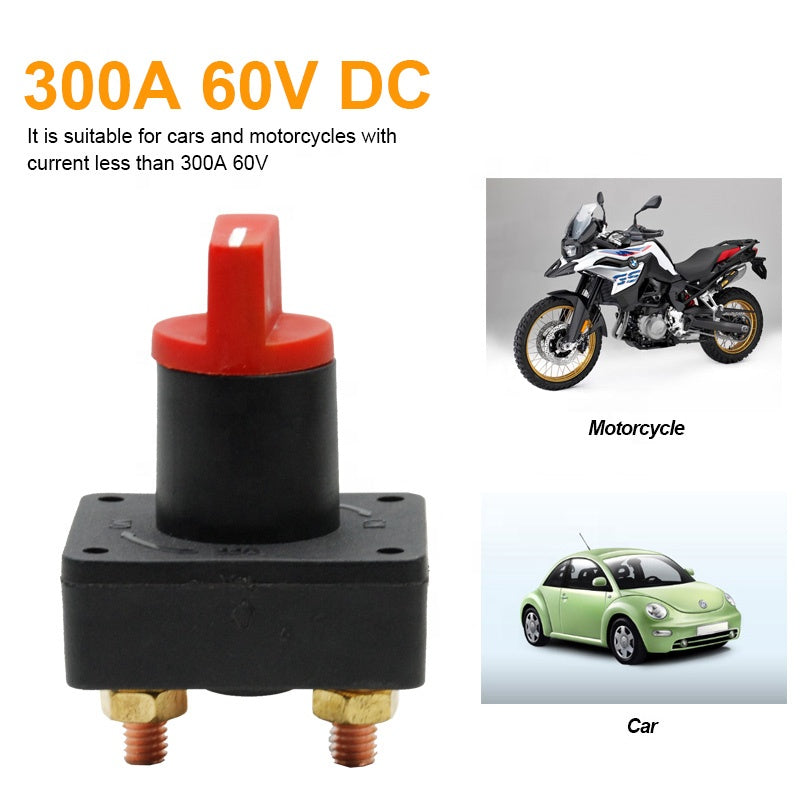

Rated current and voltage 300A 60V DC
Contact resistance 50M
Insulation resistance 100M
Dielectric strength 1500VAC / 1min
Stud Diameter: 0.23in/0.6cm
Dielectric strength: 1500VAC / 1min.
